Blind Hole 2 Flute Tap For Steel , 7 - 10 Pitch Chamfer Length Reverse Thread Tap

Name: Blind Hole 2 Flute Tap For Steel 7 10 Pitch Chamfer Length Reverse Thread Tap
Brand: DORMER
Price: 1 USD

Quality Blind Hole 2 Flute Tap For Steel , 7 - 10 Pitch Chamfer Length Reverse Thread Tap wholesale

Brand Name : DORMER

Model Number : M3*0.5

Certification : ISO9000

Place of Origin : CHINA

MOQ : 300 sets Dormer hand taps sets

Price : Negotiable

Payment Terms : T/T, D/P, Western Union, MoneyGram

Supply Ability : 500000pcs thread taps per mouth

Delivery Time : 35days

Packaging Details : rose plstic box

Name : DORMERN HAND TAPS SETS

Material : HSS-4341/M2

Standard : ISO529

Surface : Bright finished

Thread Angle : 60° and 55°

Type : thread tap

use : nodular cast iron, tempered,

Contact Now

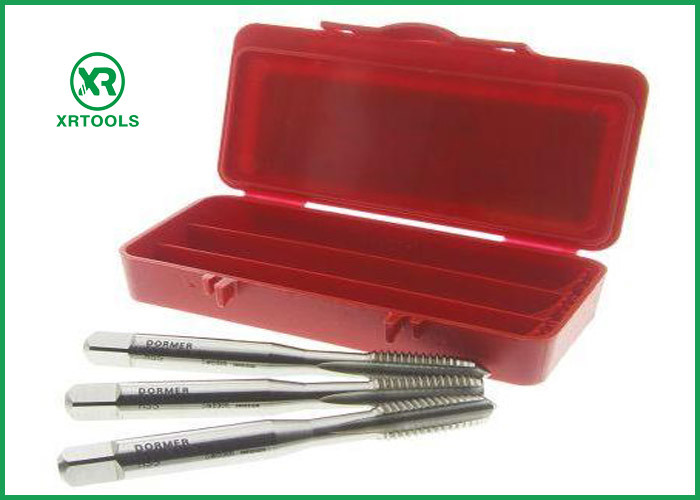

DORMER brand ISO529 standard HSS Straight Flute Tap set with red box packing

taper hand tap Description

The most versatile taps for hand use or machine tapping in a
wide variety of materials in through or blind hole applications .
Available in 3 chamfer lengths - taper, plug, and bottoming .
Taper - 7-10 pitch chamfer length
Plug - 3-5 pitch chamfer length
Bottoming - 1-2 pitch chamfer length
Sets include 1 of each tap (Taper, Plug, and Bottoming)

Application

Taps for universal application in materials < 1000 N/mm² such as common structural steels, free
cutting steels, case-hardening steels, unalloyed heat-treatable steels, nitriding steels, stainless
and acid resistant-steels as well as aluminium and aluminium-alloys.

Specification of metric left hand thread taps

Full Diameter Shank
Size	TPI	L (mm)	l1 (mm)	Size	TPI	L (mm)	l1 (mm)
M1	0.25	38.5	55	M4	0.7	53	13
M1	0.2	38.5	55	M4	0.5	53	13
M1	0.25	38.5	5.5	M4.5	0.75	53	13
M1	0.2	38.5	55	M4.5	0.5	53	13
M1.2	0.25	38.5	55	M5	0.8	58	16
M1.2	0.2	38.5	55	M5	0.5	58	16
M1.4	0.3	40	70	M5.5	0.5	62	17
M1.4	0.2	40	7 0	M6	1	66	19
M1.6	0.35	41	8	M6	0.5	66	19
M1.6	0.2	41	80	M6	0.75	66	19
M1.8	0.35	41	80	M7	1	66	19
M1.8	0.2	41	80	M7	0.75	66	19
M2	0.4	41	8 0	M8	1.25	72	22
M2	0.25	41	80	M8	0.5	66	19
M2.2	0.45	44.5	95	M8	0.75	66	19
M2.2	0.25	44.5	95	M8	1	72	22
M2.3	0.45	44.5	95	M9	1.25	72	22
M2.5	0.45	44.5	95	M9	0.75	66	19
M2.5	0.35	44.5	95	M9	1	72	22
M2.6	0.45	44.5	95	M10	1.5	80	24
M3	0.5	48	11	M10	0.75	73	20
M3	0.35	48	11	M10	1	80	24
M3.5	0.6	50	13	M10	1.25	80	24
M3.5	0.35	50	13

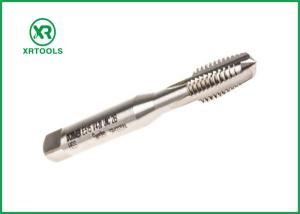

Blind Hole 2 Flute Tap For Steel , 7 - 10 Pitch Chamfer Length Reverse Thread Tap

thread forming tap Packing:

Blind Hole 2 Flute Tap For Steel , 7 - 10 Pitch Chamfer Length Reverse Thread Tap

Why choose us:

1. Experience : We are a supplier of many brands in Germany. So we have the confidence to provide you with the best service.

2. Quality Control : Quality Control System from STARRY Germany ensure our STARRY Factory's products and service QUALITY

which have strict processing quality Control for every step.

3. Service : We offer OEM&ODM service.and we accept trial order. If you find any problem. we'll find the suitable solution.

4. Product : We have confidence in the quality of our products.and the product prices are also competitive.
